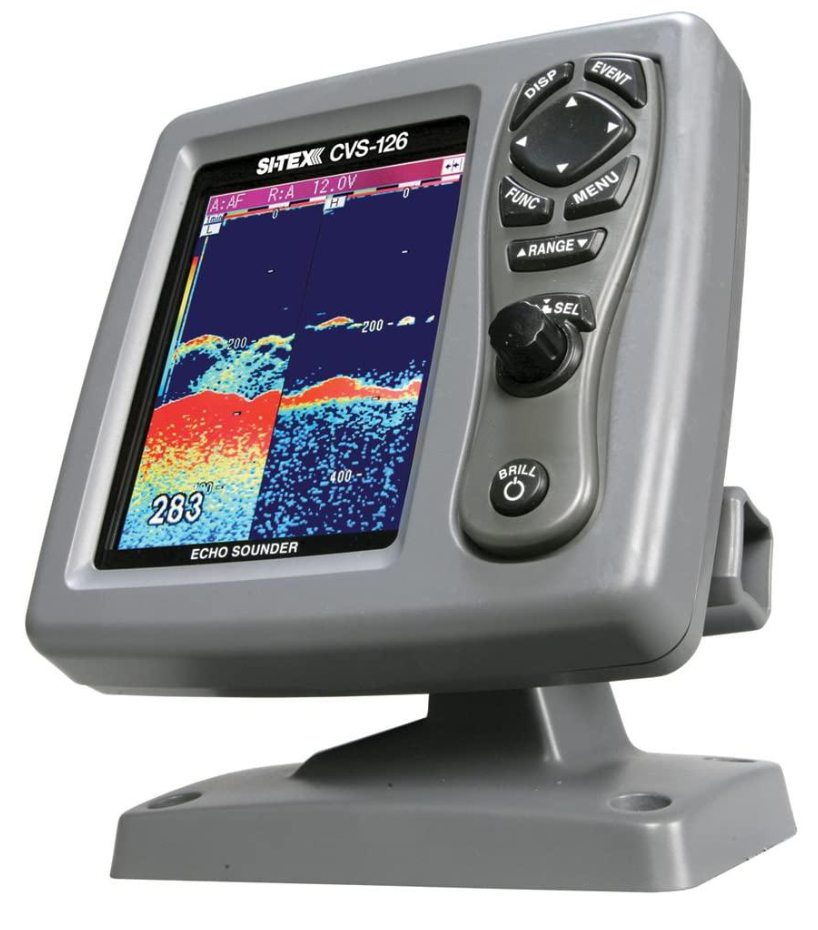

Echo Sounder
Echo Sounders are advanced devices that use sound waves to measure water depth and detect underwater objects. They play a crucial role in navigation, environmental monitoring, and seafloor mapping.
How Echo Sounders Work:
These devices emit sound waves through a transducer and measure the time taken for the echo to return. This time difference helps determine the depth of water or the distance to an object beneath the surface.
Types of Echo Sounders:
- Single-Beam Echo Sounders : The most basic type, commonly used in boating, emitting a sound pulse in a narrow cone.
- Multibeam Echo Sounders : Produce a fan-shaped beam, collecting up to 512 soundings per depth profile, offering higher resolution than single-beam systems.
Key Factors Affecting Accuracy:
- Frequency : Higher frequency sound waves offer greater accuracy, but they are quickly absorbed by water, making them unsuitable for deep-water surveys.
- Survey Software : Records timestamped data to minimize errors and uses a “Patch Test” algorithm to adjust for latency sources.
- Sound Velocity : The speed of sound in water depends on density, which is influenced by turbidity, salinity, temperature, and pressure.
Echo Sounders are essential for marine exploration, hydrographic surveys, and underwater construction, providing precise and reliable depth measurements.
